Custom Detection Rules: Writing, Testing, & Validating

Overview

With Wazuh running and all agents enrolled, the next step was building custom detection logic tailored to this environment. Wazuh ships with hundreds of built-in rules, but a core SOC skill is writing detections specific to your infrastructure: understanding which base rules fire, chaining events for correlation, and validating that alerts trigger reliably before trusting them in production.

This post covers four custom rules, written, tested, and verified against live attack simulations on the lab machines.

---

Rule Architecture: Essential Concepts

Before writing any detection rule, three concepts must be understood correctly. Getting these wrong produces rules that appear syntactically valid but silently never fire.

1. if_sid vs if_matched_sid

Directive	Behavior	Use Case
if_sid	Fires when a single event matches the parent rule	Immediately suspicious activity (e.g., unauthorized sudo)
if_matched_sid	Fires when a parent rule matches N times within a time window	Correlation-based detection (e.g., brute force)

A single failed login is normal. Thirty failed logins from the same IP in sixty seconds is not, that requires if_matched_sid with frequency correlation.

2. frequency and timeframe Are Attributes, Not Elements

A common XML mistake:

<!-- WRONG — loads without error but never fires at threshold -->
<rule id="100001" level="10">
  <frequency>5</frequency>
  <timeframe>60</timeframe>
</rule>

Correct placement, as attributes on the <rule> tag:

<!-- CORRECT -->
<rule id="100001" level="10" frequency="5" timeframe="60">
</rule>

The incorrect version produces no error. The rule loads but the threshold logic never activates. This is a silent failure with no indication in logs.

3. same_srcip vs same_field (Windows Events)

same_srcip groups frequency counts by source IP, it works correctly for Linux events where decoders populate the standard srcip field.

For Windows events, the attacker IP is stored in win.eventdata.ipAddress, a dynamic decoded field. The standard srcip field is empty. A Windows correlation rule using same_srcip will never reach its frequency threshold because no two events share the same empty value.

Solution: Use same_field with the correct decoded field name:

<same_field>win.eventdata.ipAddress</same_field>

This is the most non-obvious failure mode in Wazuh rule writing. The rule loads, events arrive, and nothing fires. The only way to catch it is knowing this specific behavior exists.

---

Verifying Base Rule IDs

Before writing correlation rules, the actual base rule ID firing for each event type was verified in the live environment. Documentation lists expected IDs, but the actual firing rule depends on Wazuh version and agent OS.

Method: Generated test events → observed alerts in Wazuh dashboard → noted the actual rule.id on each alert.

Event Type	Expected SID	Actual SID	Delta
SSH invalid user	5710	5710	Match
SSH auth failure	5716	5760	Different
Linux sudo failure	5401	5405	Different
Windows Event ID 4625	60122	60122	Match

Two of four expected base rule IDs were wrong. A correlation rule written against the wrong parent ID produces no error and never fires. Always verify in your specific environment.

---

The Detection Rules

All rules reside in /var/ossec/etc/rules/local_rules.xml on the Wazuh manager. Custom rule IDs use the 100000–999999 range to avoid conflicts with built-in rules.

Rule ID	Description	Level	Type
100001	SSH brute force — invalid user	10	Correlation (5+ events/60s)
100002	SSH auth failure spike	12	Correlation (5+ events/60s)
100003	Linux unauthorized sudo attempt	12	Single-event
100004	Windows failed logon spike	10	Correlation (5+ events/60s)

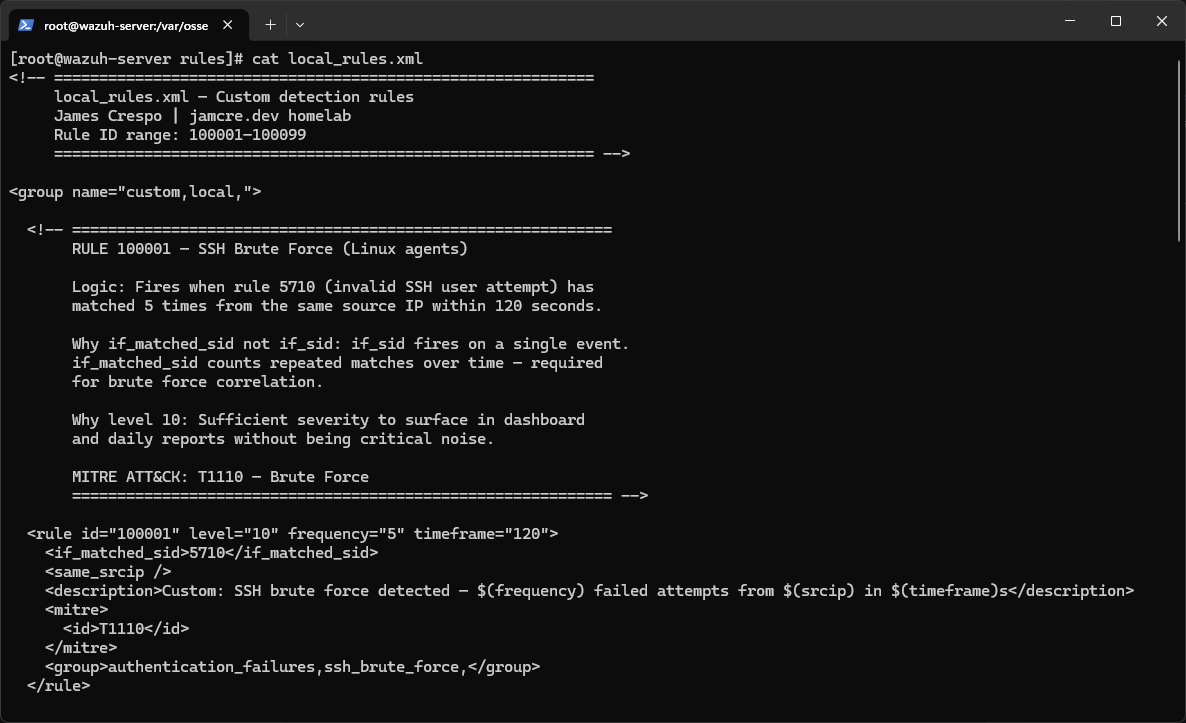

Custom rules deployed in local_rules.xml on the Wazuh manager

Rule Design Decisions

• Rules 100001/100002 separate the two SSH failure paths (invalid user vs. wrong password for existing user) because they fire different base rules and represent different attacker behaviors
• Rule 100003 has no frequency threshold — a single unauthorized sudo attempt is immediately suspicious and warrants an alert
• Rule 100004 uses same_field instead of same_srcip to correctly correlate Windows events by attacker IP

---

Validation Process

Syntax Verification

wazuh-logtest was used to validate rule matching logic interactively before restarting the manager. Sample SSH failure logs were pasted, and the firedtimes counter was observed incrementing. On the fifth paste, the correlation rule fired as expected.

After saving rule changes, restart the manager:

systemctl restart wazuh-manager

Attack Simulations

Each rule was tested with a targeted simulation designed to reliably trigger its specific detection path.

Rules 100001 & 100002 — SSH Brute Force

Failed SSH logins generated from citadel targeting pavilion:

# Rule 100001 — invalid user path (triggers base rule 5710)
for ($i=1; $i -le 6; $i++) {
    ssh fakeuser@192.168.20.XX 2>$null
    Start-Sleep -Milliseconds 500
}

For Rule 100002, a test user was created on the target with a known password, then rapid failures were generated against that existing account to trigger the auth failure path (rule 5760).

Rule 100003 — Unauthorized Sudo

A non-privileged test user attempted a privileged command:

sudo cat /etc/shadow

The PAM subsystem logged the unauthorized attempt, Wazuh decoded it via base rule 5405, and custom rule 100003 fired on the single event.

Rule 100004 — Windows Failed Logon Spike

net use was used to generate network logon failures, which reliably populates win.eventdata.ipAddress in Event ID 4625:

for ($i=1; $i -le 6; $i++) {
    net use \\192.168.20.XX\ipc$ /user:fakeuser wrongpassword 2>$null
    Start-Sleep -Milliseconds 500
}

The net use method is recommended over Start-Process or GUI-based credential prompts, which are unreliable for populating win.eventdata.ipAddress.

---

Results

All four rules fired successfully and were confirmed in the Wazuh dashboard:

Rule ID	Description	Alert Level	Result
100001	SSH brute force — invalid user	10	✅ Fired and confirmed
100002	SSH auth failure spike	12	✅ Fired and confirmed
100003	Linux unauthorized sudo	12	✅ Fired and confirmed
100004	Windows failed logon spike	10	✅ Fired and confirmed

---

Key Lessons Learned

Lesson	Impact
Verify base rule IDs in your environment	2 of 4 expected IDs were wrong — silent correlation failure
same_srcip fails for Windows events	Use same_field with the correct decoded field name
frequency/timeframe are rule attributes	Wrong placement = no error + threshold never activates
Single-event rules don’t need frequency	One unauthorized sudo attempt is already suspicious
Test both SSH failure paths separately	Invalid user (5710) and wrong password (5760) are distinct detection paths

---

What’s Next

V2 went from a flat network with no visibility to a three-VLAN segmented architecture with centralized DNS, HTTPS service routing, and a SIEM running custom detection rules validated against live attack simulations.

The natural next steps were expanded detection coverage, remote access via WireGuard/Tailscale, and additional services on inspiron. Plans that were ultimately redirected by a hardware upgrade that made a V3 rebuild the better path forward.
